Product family » Saint Raphael
  • Indicator lighting
    • 2 product(s) in marker-lighting
1844
Marker-light This option does match with your criteria
1844CR1
Safety cable This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

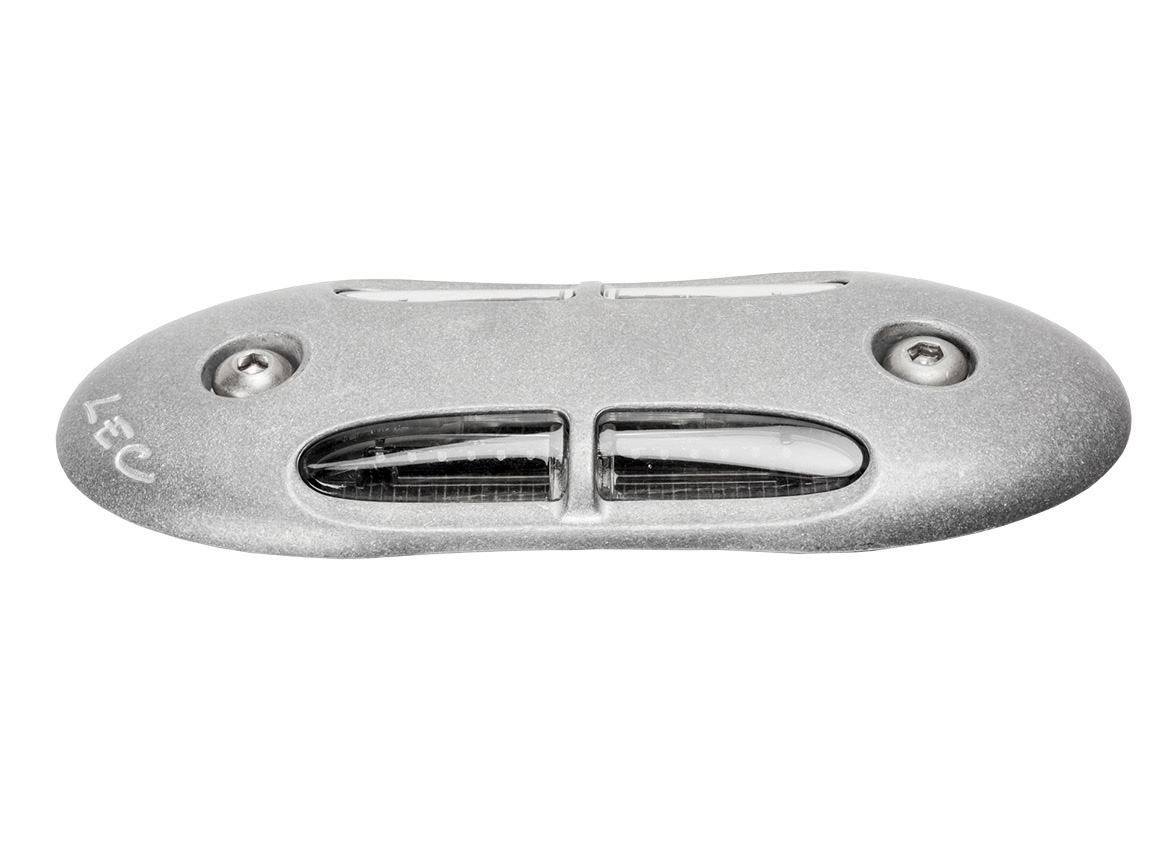

1844 - Saint Raphael (Marker-lighting)

Application

  • Indicator lighting
    • Marker-lighting

Mounting type

  • Ground recessed fittings

Features

  • Weight
    360 gr

Options of luminous effects

  • Non adjustable
  • Paralell beam
  • Transparent dome (optional)

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Marine anodised cast aluminium

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Protrusion which is an obstacle for 2-wheels vehicles and pedestrians. The unit should be permanently lit to draw attention to the obstacle.
  • Withstands low-speed light vehicles traffic
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists compression up to 2,5 tons
    2,5T
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Reset filters
Access the file
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Cast aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Attaches directly to roadway or to recess plate
see more
