Product family » Palais Royal

LED spotlight surface-mounted on roadways for raking or extensive illumination.



APPLICATIONS:

  • Cycle paths and pedestrian paths lighting
  • Roadway lighting
  • Public space lighting
  • Low facades lighting
  • Footbridges and piers
Read more
  • Lighting
    • 2 product(s) in lighting
1843
Projector This option does match with your criteria
1843SF
1 lighting direction This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

1843 - Palais Royal (Outdoor lighting)

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    419 lm

Mounting type

  • Ground recessed fittings
  • Pavements sides

Features

  • Weight
    610 gr

Options of luminous effects

  • Non adjustable
  • Paralell beam
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Protrusion which is an obstacle for 2-wheels vehicles and pedestrians. The unit should be permanently lit to draw attention to the obstacle.
  • Withstands random all vehicles traffic
  • Withstands low-speed light vehicles traffic
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists compression up to 8 tons
    8T
  • Resists impacts up to IK10 60J
    IK10 60J
  • IP68 Tight for extended immersion
    68

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 1843 Palais Royal

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.

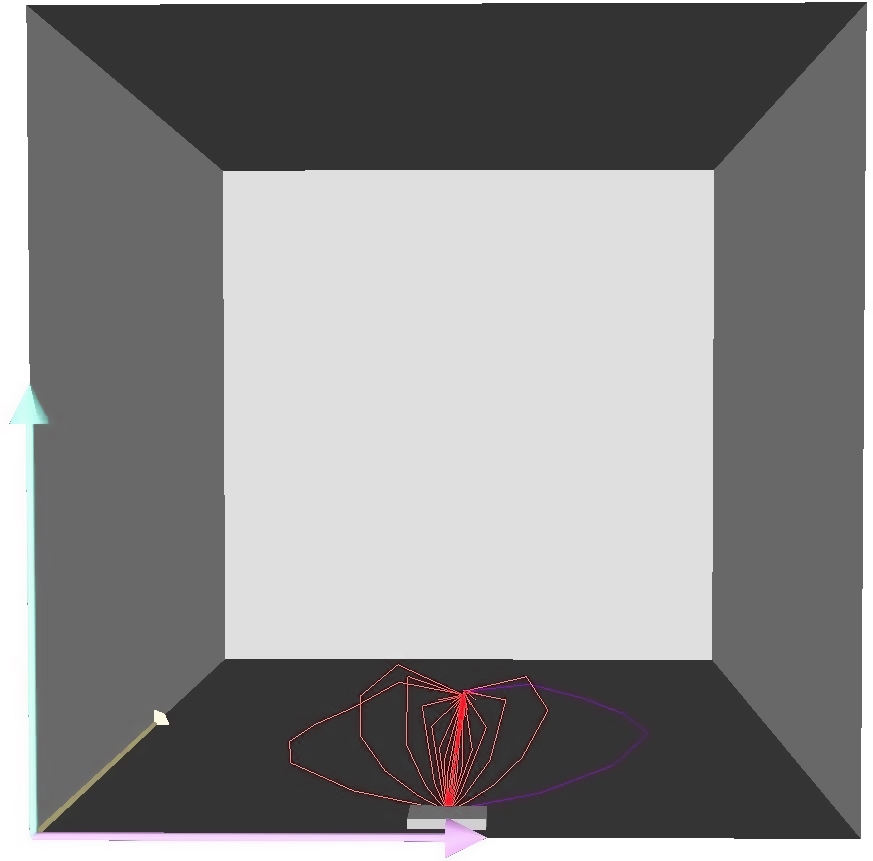

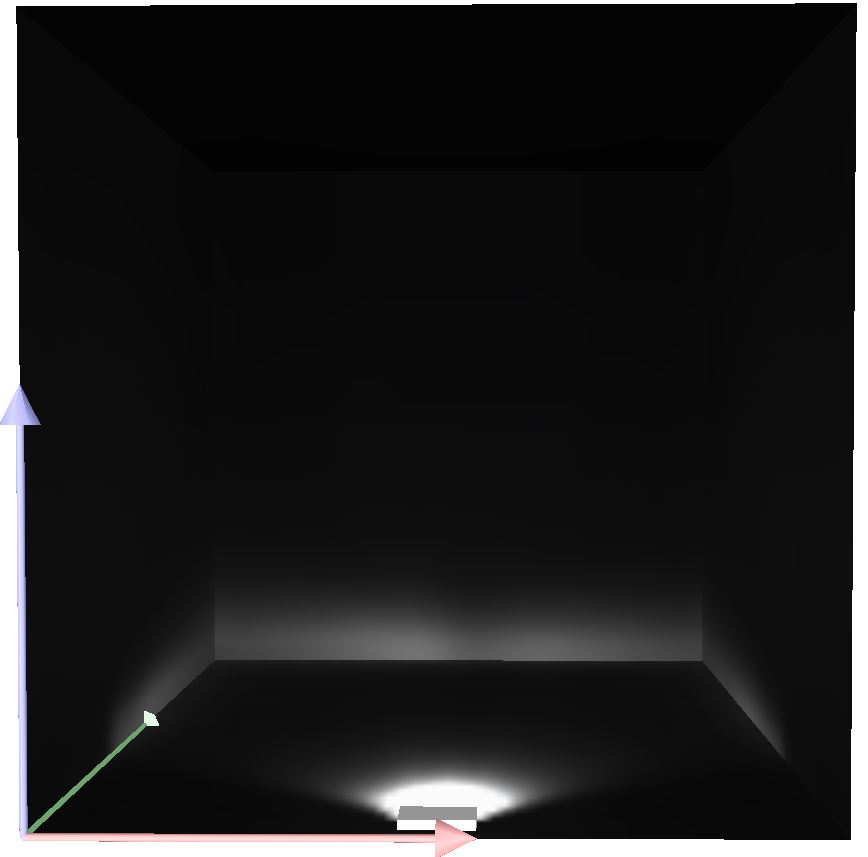

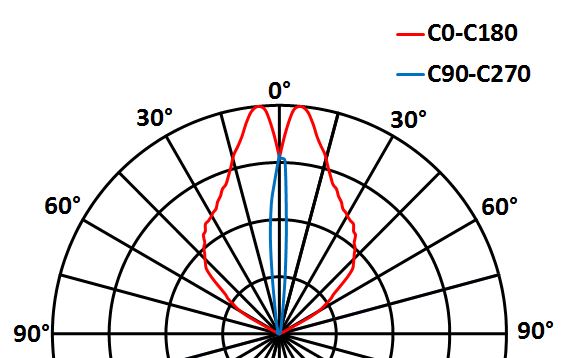

Polar data Simulation In position
C2
Access the photometric data
Close
Photometric data
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 1843 Palais Royal

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
C2
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

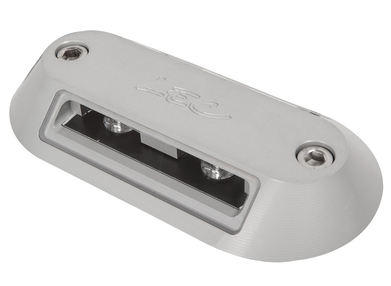

Two-way directions.

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Mounted directly on roadway or to recess plate
  • Withstands occasional traffic from all kinds of vehicles
see more

Projects featuring this luminaire

Read more
Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
