Product family » Savoie
  • Indicator lighting
    • 2 product(s) in marker-lighting
1810
Without connecting box This option does match with your criteria
1810B
With connecting box This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

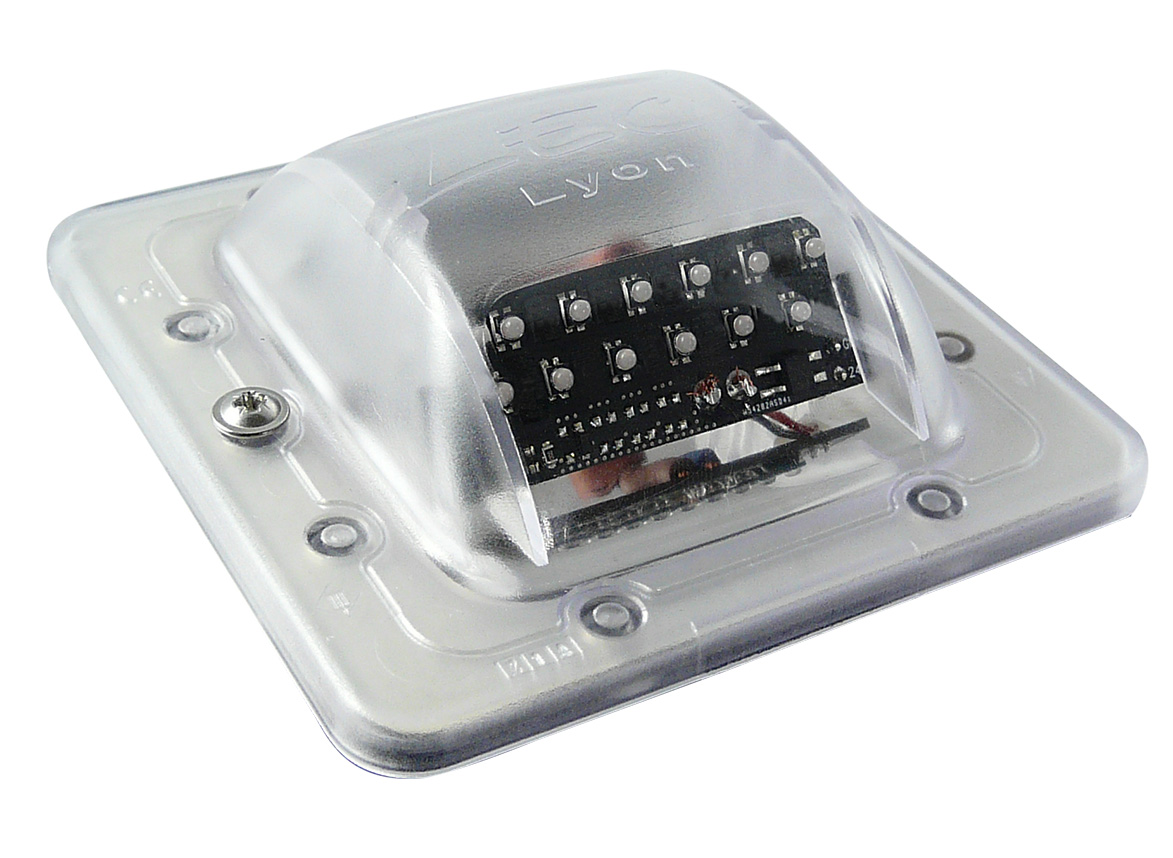

1810 - Savoie (Marker-lighting)

Application

  • Indicator lighting
    • Marker-lighting

Mounting type

  • Wall lights

Features

  • Weight
    250 gr

Options of luminous effects

  • Non adjustable
  • Inclined beam
  • Paralell beam
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Vandalism-proof, UV-proof, polycarbonate window

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists impacts up to IK10 40J
    IK10 40J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Reset filters
Access the file
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Organic glass lens
  • Stainless steel mirror back
  • Aerodynamic shape to reduce particle deposits and permit easy cleaning with water.
  • Materials unaffected by corrosive atmosphere in tunnels
  • Beams angled 45°
  • Fireproof safety cable CR1-C1 optional

Fixing by sides ears (1810C)

see more

Projects featuring this luminaire

Read more
Retrieve articles linked to this product on our LEC Expert blog through a click on this symbol:
