1810B - Savoie (Marker-lighting)

Application

  • Indicator lighting
    • Marker-lighting

Mounting type

  • Wall lights

Features

Options of luminous effects

  • Non adjustable
  • Inclined beam
  • Paralell beam
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI
  • 230V-Non dimmable 230V
    Integrated
    230V-Non dimmable

Material

  • Vandalism-proof, UV-proof, polycarbonate window

Mechanical strength - Waterproofness

  • IP69K pressure water spray (previous registration)
  • Certified in compliance with European Standards 60598-2-22 for emergency lighting units
  • Resists impacts up to IK10 40J
    IK10 40J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Reset filters
Access the file
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

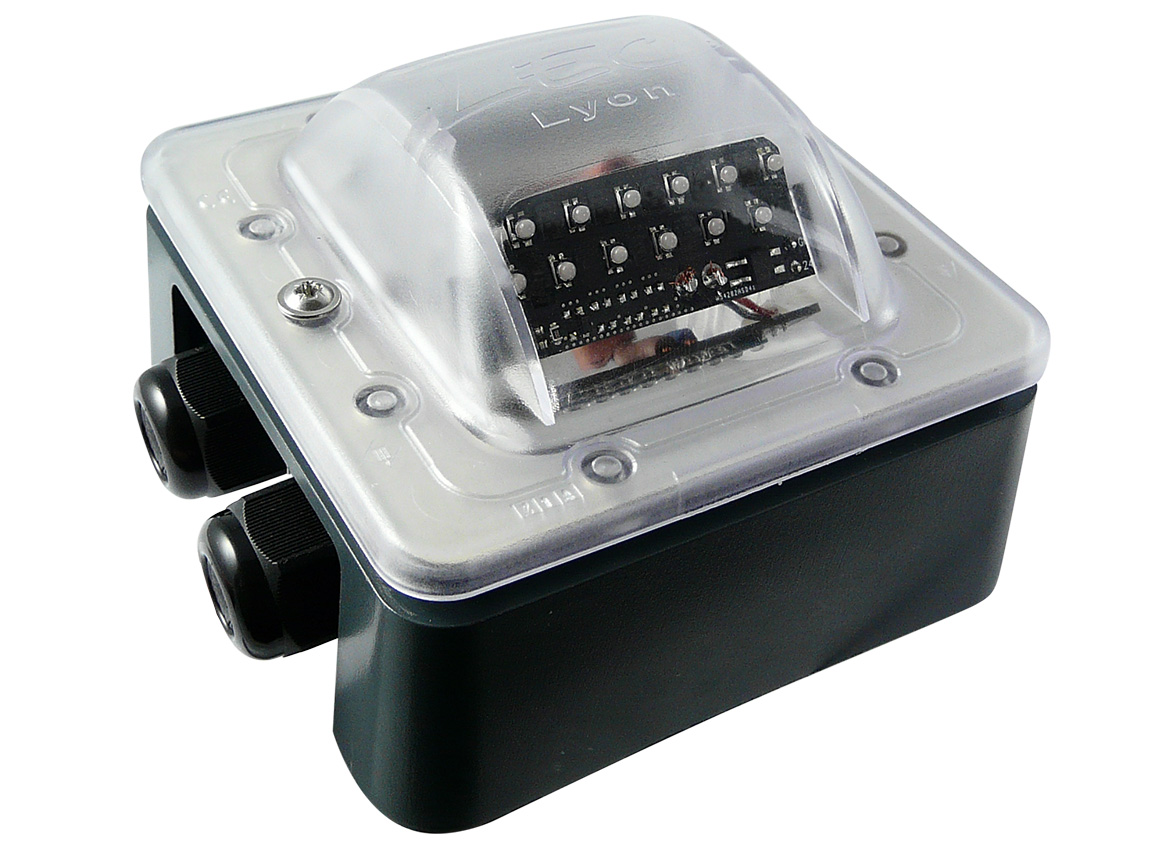

Fitted with a connecting box with one or two cable glands for in-line connection.

  • Organic glass lens
  • Stainless steel mirror back
  • Aerodynamic shape to reduce particle deposits and permit easy cleaning with water.
  • Materials unaffected by corrosive atmosphere in tunnels
  • Beams angled 45°
  • Fireproof safety cable CR1-C1 optional
see more
