Product family » Bourgogne

«Mini» version in the round flush recessed raking light range.

APPLICATIONS:

Highlight architectural features, street furniture, landscape...
Surface mounted lighting for cycle path, pedestrian path, stairs
Squares and public places

Lighting

1750

Projector This option does match with your criteria

1750K

Stainless steel flange This option does match with your criteria

Indicator lighting

1750

Marker-light This option does match with your criteria

1750DS

Frosted dome This option does match with your criteria

1750H

Uniform This option does match with your criteria

1750K

Stainless steel flange This option does match with your criteria

Access product brochure PDF

See the products ranges synthesis New products Contact us

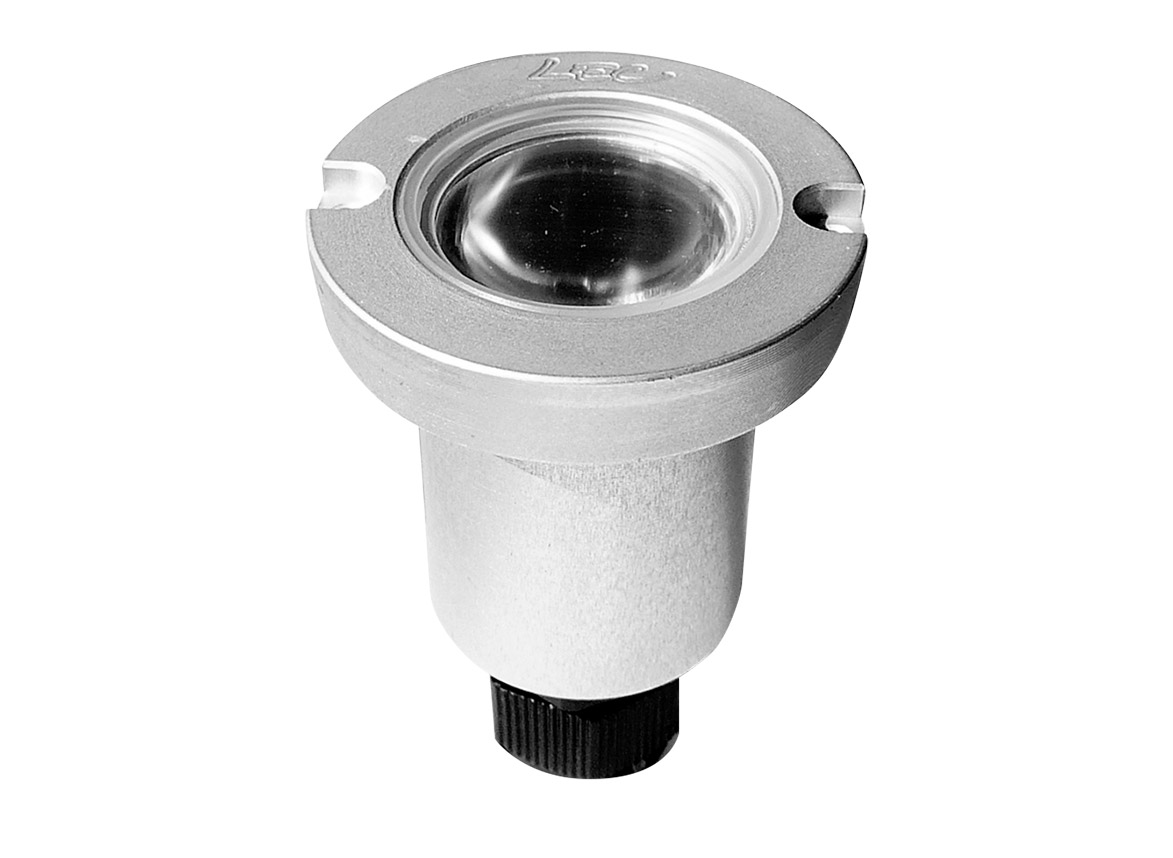

1750 - Bourgogne (Outdoor lighting)

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
223 lm

Mounting type

Ground flush recessed fittings
Ground recessed fittings
Pavements sides

Features

Weight
130 gr

Options of luminous effects

20° deflected beam (option)
Non adjustable
Beam with various openings
Transparent flat window

Power supply - Control

Cable length
1 m
24V-PWM

Integrated

24V-PWM

Remote

24V-0/10V
,
24V-DMX
,
24V-DALI

Material

Anodised glazed aluminium
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Withstands random all vehicles traffic
Resists impacts up to IK10 60J
IK10 60J
IP68 Tight for extended immersion
68

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 1750 Bourgogne

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

Polar data Simulation In position

10°

20°

36°

52°

77°

120°

130x25° (L1)

116x44° (L2)

40x10° (L4)

100x20° (L7)

Access the photometric data

Photometric data

Optic options available for the product: 1750 Bourgogne

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Colourless anodised machined aluminium body

Vandalproof organic glass window
316L Stainless steel screws
Flush-recessed (except 1750K and 1750DS)
3 possible recess dimensions
Withstands occasional traffic from all kinds of vehicles (1750 & 1750H)
