Product family » Arches

This compact linear spotlight is designed to be installed on a windowsill or facade belt-course.
Fitted with an 100x12° lens, the uprights and lintel of the windowframe will be illuminated without emitting any unwanted-beams.

For installation on an architectural belt-course, the choice of available lenses allows upward converging beams or uniform wall-washing of the facade despite being installed very close to the facade.



APPLICATIONS:

  • Windowframe lighting
  • Wallwashing
  • Architectural heritage enhancement
  • Path lighting
  • Direct or indirect lighting of public space
Read more
  • Lighting
    • 2 product(s) in lighting
5632
Mini version - 3 LED This option does match with your criteria
5633
This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

5632 - Arches (Outdoor lighting) New

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    669 lm

Mounting type

  • Wall lights

Features

Options of luminous effects

  • Adjustable on 1 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5632 Arches

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
130x25° (L1)
116x44° (L2)
100x12° (L3)
40x10° (L4)
100x20° (L7)
Access the photometric data
Close
Photometric data
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5632 Arches

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
130x25° (L1)
116x44° (L2)
100x12° (L3)
40x10° (L4)
100x20° (L7)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

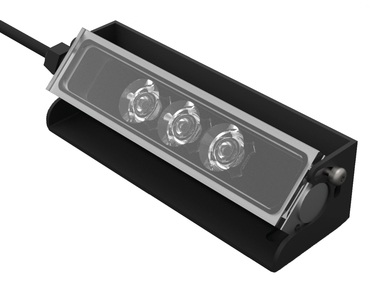

"Mini" version with 3 LEDs

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel screws
  • Thermolacquered paint on request



see more
