Product family » Belval

Handrail spotlight with invisible-screw recessing unit Wide choice of lenses including:
Very extensive asymmetric versions to ensure beam uniformity with intervals of up to 7m
Tilted beam to have tilted output even when the fitting is installed vertically to hide the light source



APPLICATIONS:

  • Cycle paths and pedestrian paths lighting
  • Roadway lighting
  • Handrail
  • Footbridge
Read more
  • Lighting
    • 2 product(s) in lighting
5629
For handrails This option does match with your criteria
5630
For handrails This option does match with your criteria
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

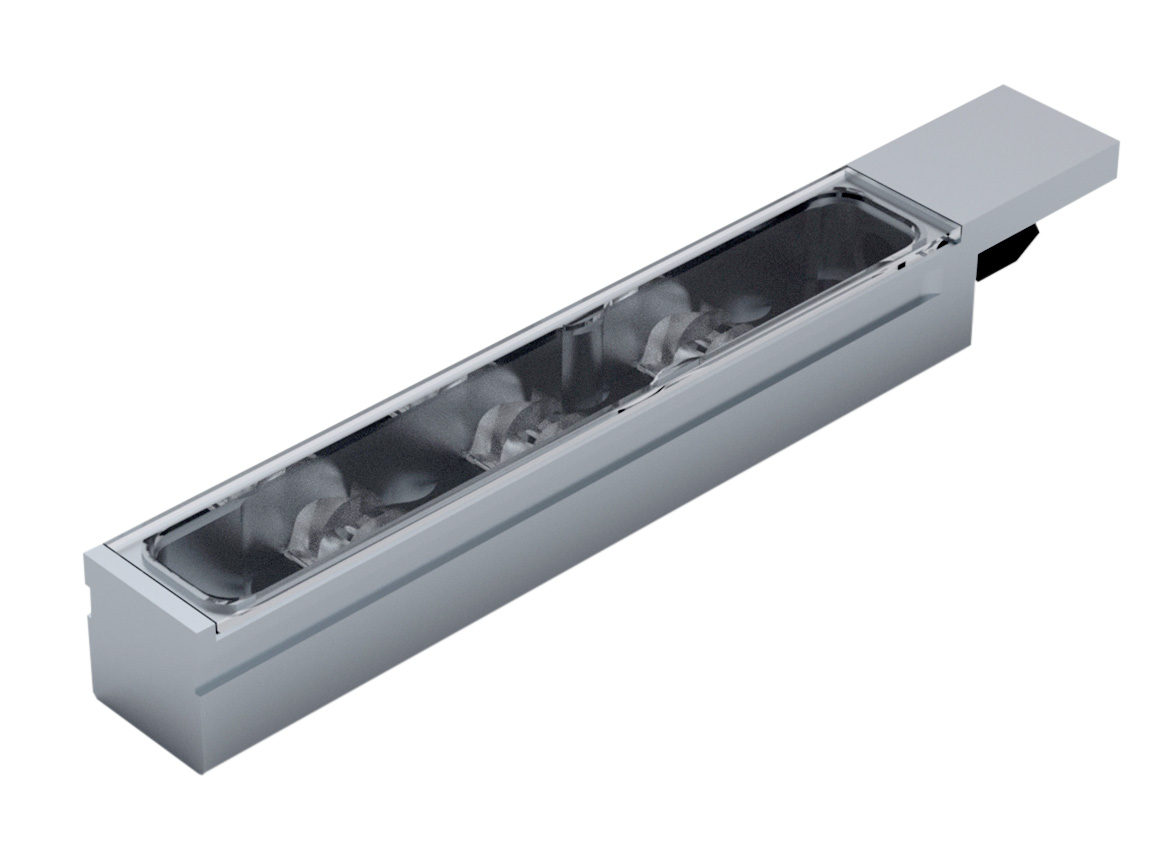

5629 - Belval (Outdoor lighting) New

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    259 lm

Mounting type

  • Wall recessed
  • Handrails

Features

  • Weight
    200 gr

Options of luminous effects

  • 20° deflected beam (option)
  • Non adjustable
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    0.2m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
Download EU Declaration of conformity
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5629 Belval

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
52°
130x25° (L1)
116x44° (L2)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
Access the photometric data
Close
Photometric data
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 5629 Belval

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
52°
130x25° (L1)
116x44° (L2)
130x25° deflected 50° (L5)
116x44° deflected 36° (L6)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images

"Mini" version with 3 LEDs

  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • Flush-recessed
  • 2 possible recess profiles
  • Colourless anodised machined aluminium body
  • Vandalproof organic glass window
  • Flush-recessed
  • 2 possible recess profiles
