Product family » Corsica

Spotlight developed for illuminating facades, with a compact design and optimised for uniform wall-washing.

APPLICATIONS:

Facade, monument lighting
Tree and vegetation uplighting
Direct or indirect lighting of public space

Lighting

4660

This option does match with your criteria

4661

Whith ground mounting plate This option does match with your criteria

Access product brochure PDF

See the products ranges synthesis New products Contact us

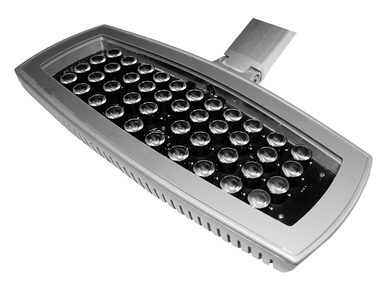

4660 - Corsica (Outdoor lighting)

Application

Lighting

This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
Standard flux :
9366 lm

Mounting type

Wall lights
Masts

Features

Weight
5000 gr

Options of luminous effects

RGBW option
Adjustable on 2 axis
Rotating beam
Beam with various openings
Transparent flat window
Colour control system (optional)

Power supply - Control

Cable length
5 m
230V-Non dimmable

Integrated

230V-Non dimmable
,
230V-PWM
,
230V-0/10V
,
230V-DMX
,
230V-DALI

Material

Marine anodised cast aluminium
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

Resists impacts up to IK10 20J
IK10 20J
IP67 Tight for temporary immersion
67

Downloads

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

Electricity consumption
Output
Maximum use temperature
Contact temperature

Configure now

Product configurator

Optic options available for the product: 4660 Corsica

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on your chosen optic, then confirm.

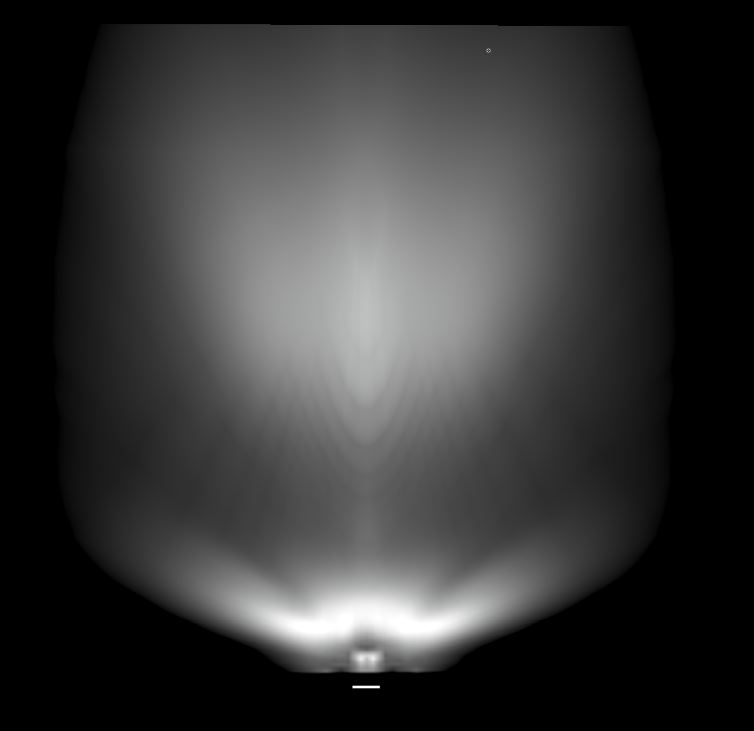

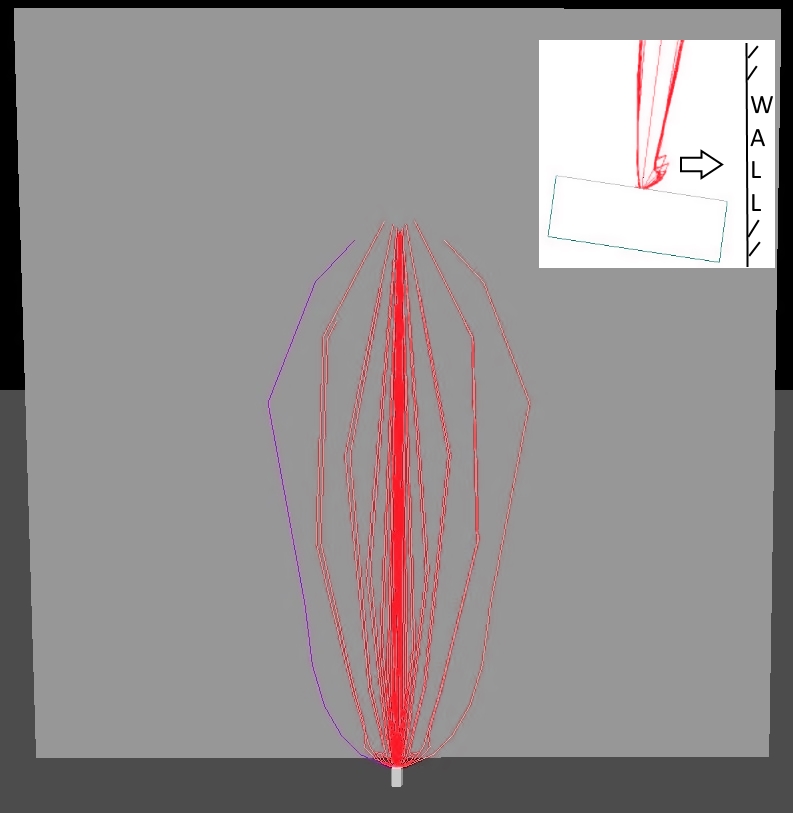

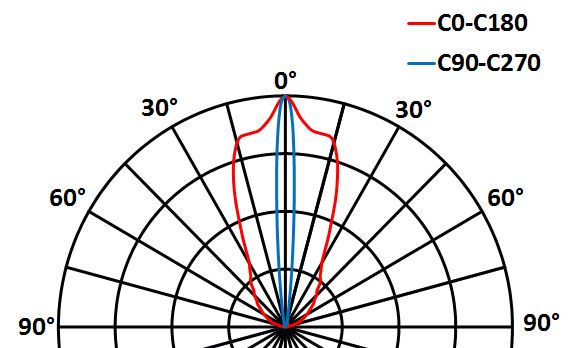

Polar data Simulation In position

10°

20°

36°

52°

77°

120°

For wall washing Warning : choose the right orientation

130x25° (L1)

116x44° (L2)

100x12° (L3)

40x10° (L4)

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Access the photometric data

Photometric data

Optic options available for the product: 4660 Corsica

Your search criteria : Number of LEDs : Type of LEDs : Colour :

Select the tab of your choice and click on one or more chosen optics, then confirm.

I select all the optics.

Polar data Simulation In position

For wall washing Warning : choose the right orientation

130x25° deflected 50° (L5)

116x44° deflected 36° (L6)

100x20° (L7)

Confirm

Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france

Aluminium body with thermolacquered paint finish, RAL on request
Vandalproof organic glass window
Fixed or adjustable arm (max 1m)
Tilt adjustment: +/- 90° around the 2-way-locking ball & socket and +/- 15° around the arm axis
Remote power & control unit (except 4661)
Optional light hood
RGBW options available
