Product family » Saint-Jean

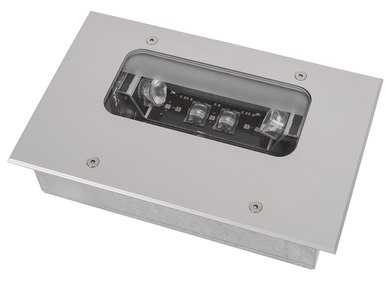

Recessed spotlight for path lighting to be placed at less than one metre above ground.
Special H30 and H60 lenses Cycle paths and pedestrian paths lighting, at large intervals (more than 6m). Tiltable beam (+/-30°) without opening the spotlight.
Wall version of the 6430 bollard.
APPLICATIONS:
- Cycle paths and pedestrian paths lighting
- Stair lighting
- Monuments lighting
-
Lighting
2 product(s) in lighting
4330 - Saint-Jean
Application
-
Lighting
Outdoor lighting
- This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K) Standard flux :892 lm
Mounting type
-
Wall recessed
Features
-
Weight
2080 gr
Options of luminous effects
-
Adjustable on 1 axis
-
Rotating beam
-
Beam with various openings
-
Transparent flat window
Power supply - Control
-
Cable length
1 m -
24V-Non dimmable
Integrated24V-Non dimmable,24V-PWMRemote24V-0/10V,24V-DMX,24V-DALI -
230V-Non dimmable
Integrated230V-Non dimmable
Material
-
Anodised glazed aluminium
-
316L Stainless steel
-
Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2
Mechanical strength - Waterproofness
Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.
-
Electricity consumption
-
Output
-
Maximum use temperature
-
Contact temperature
Product configurator
Optic options available for the product: 4330 Saint-Jean
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Access the photometric data

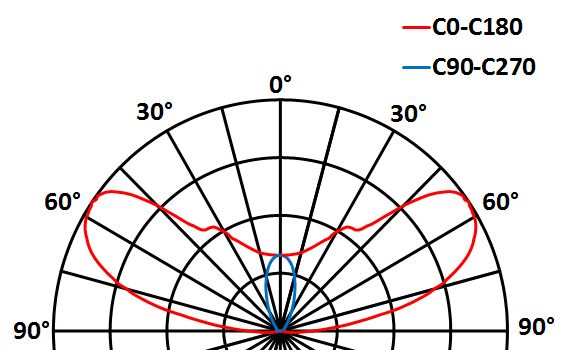

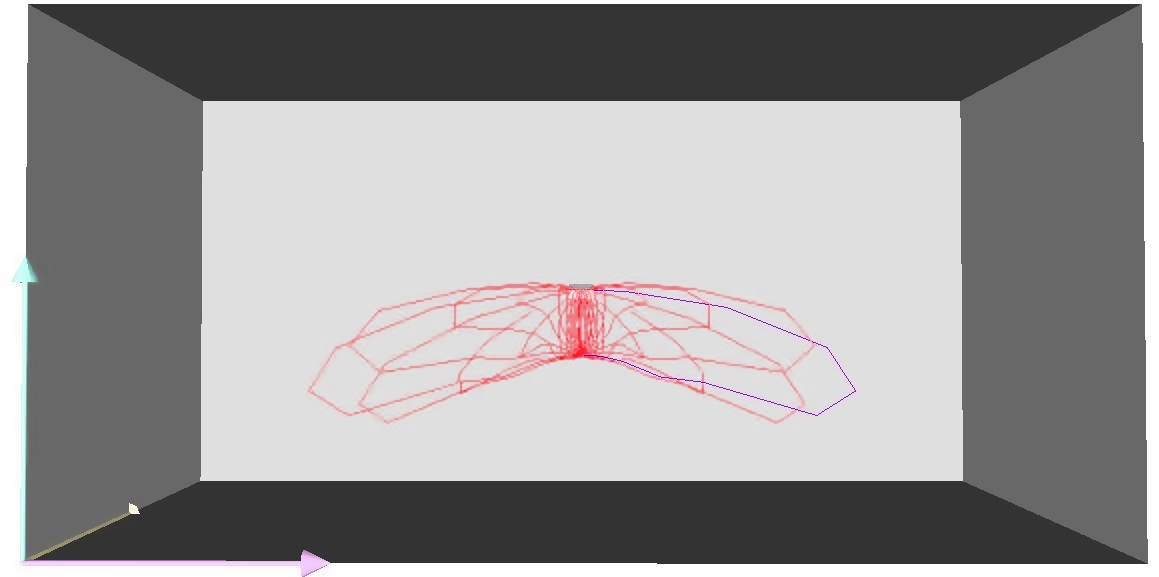

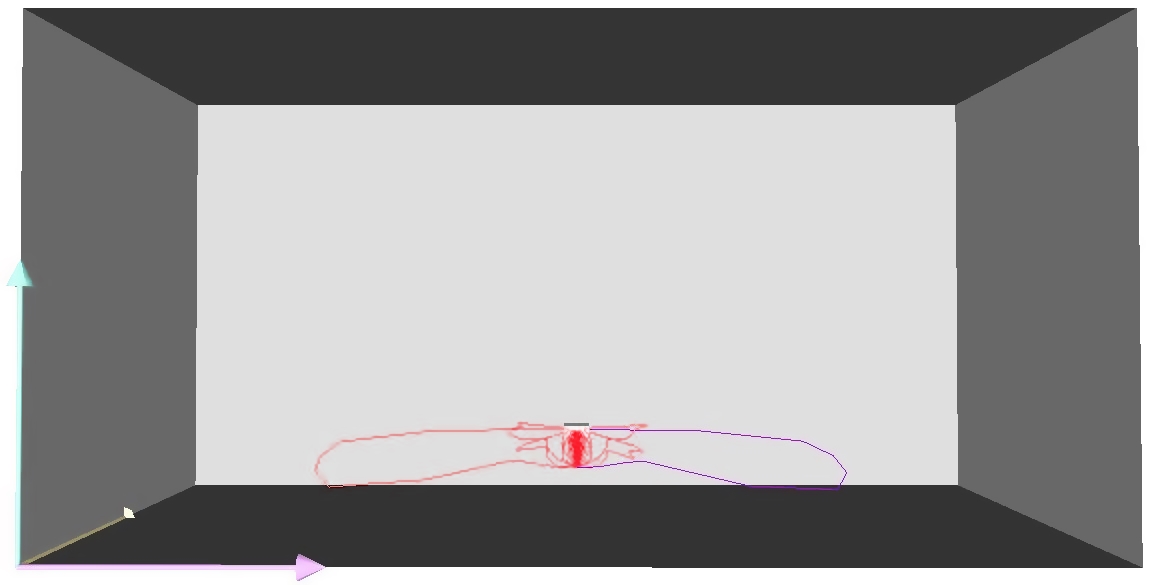

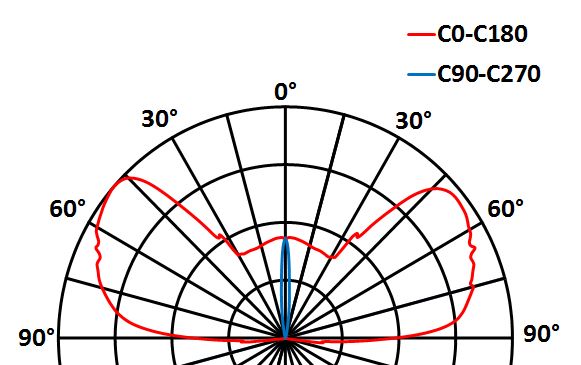

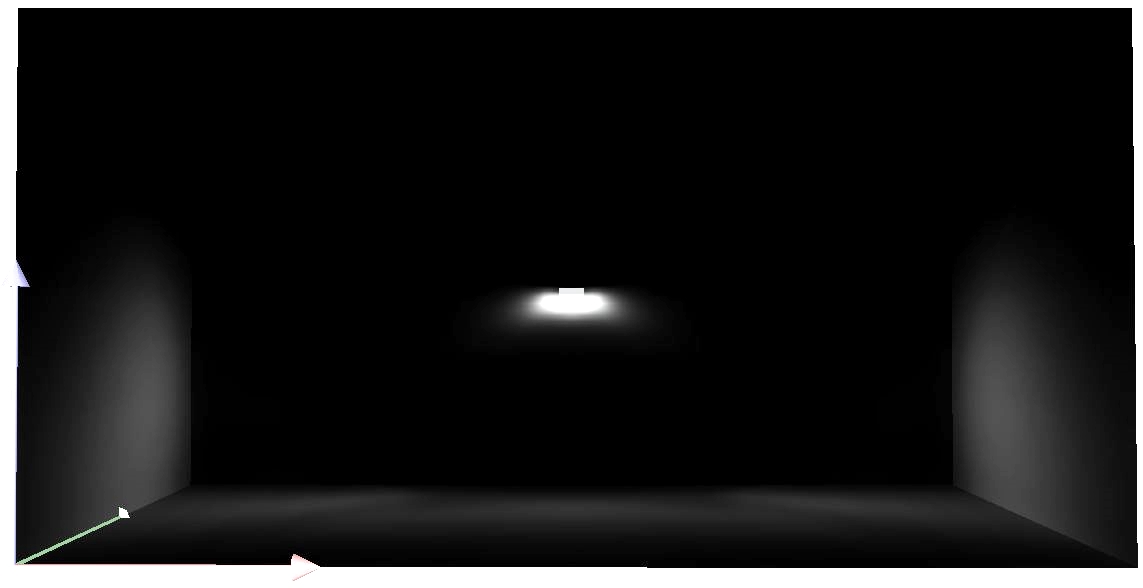

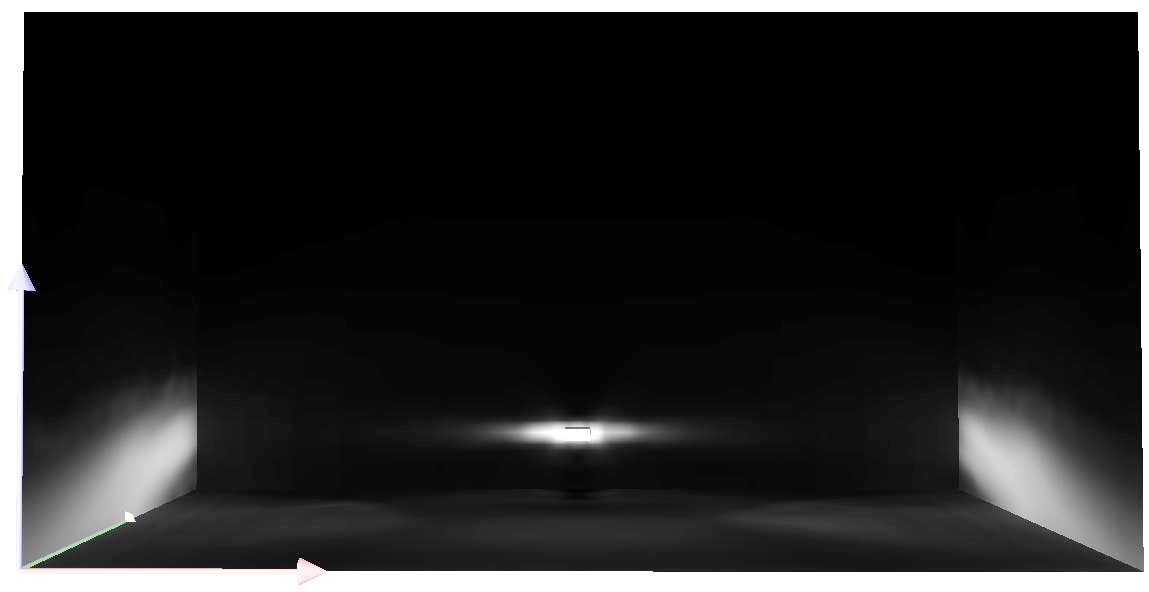

Photometric data
Optic options available for the product: 4330 Saint-Jean
Your search criteria :
Number of LEDs :
Type of LEDs :
Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France.
- Anodised aluminium body
- Colourless anodised machined aluminium frame
- Vandalproof organic glass window
- Thermolacquered paint on frame on request
