Product family » Luminy

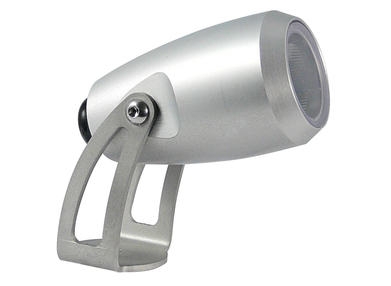

«Mini» version in the Luminy spotlight range.

Installs on roads/floors, wall or poles with bespoke accessories.



APPLICATIONS:

  • Highlight architectural features
  • Highlight landscapes
  • Path, alley, street furniture
Read more
Access product brochure PDF
See the products ranges synthesis New products Contact us
see the next product see the previous product

4010 - Luminy (Outdoor lighting)

Application

  • Lighting
    • Outdoor lighting
  • This value is gained from the optimum output of the LED number, inclusive of optic, for a cool white LED (6000K)
    Standard flux :
    223 lm

Mounting type

  • Wall lights
  • Masts

Features

  • Weight
    220 gr

Options of luminous effects

  • Adjustable on 2 axis
  • Rotating beam
  • Beam with various openings
  • Transparent flat window

Power supply - Control

  • Cable length
    1 m
  • 24V-PWM 24V
    Integrated
    24V-PWM
    Remote
    24V-0/10V
    ,
    24V-DMX
    ,
    24V-DALI

Material

  • Anodised glazed aluminium
  • Vandalism-proof, scratch-proof, UV-proof, polycarbonate window, M2

Mechanical strength - Waterproofness

  • Resists impacts up to IK10 20J
    IK10 20J
  • IP67 Tight for temporary immersion
    67

Downloads

Download Standard product datasheet (pdf)
see more

Select your specific requirements with our product configurator, by filtering technical criteria. Download the configurated product datasheet.

  • Electricity consumption
  • Output
  • Maximum use temperature
  • Contact temperature
Configure now
Close
Product configurator
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 4010 Luminy

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on your chosen optic, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
100x20° (L7)
Access the photometric data
Close
Photometric data
Please choose a type of optic
Reset filters
Access the file
... Ajax content

Optic options available for the product: 4010 Luminy

Your search criteria : Number of LEDs : Type of LEDs : Colour :
Select the tab of your choice and click on one or more chosen optics, then confirm.
Polar data Simulation In position
10°
20°
36°
52°
77°
120°
130x25° (L1)
116x44° (L2)
40x10° (L4)
100x20° (L7)
Confirm
Technical data is subject to changes.
Luminaire guaranteed 5 years.
Luminaire designed and manufactured in France. Made in france
Download images
  • Anodised machined aluminium body
  • Vandalproof organic glass window
  • 316L Stainless steel bracket and screws
  • Thermolacquered bracket on request
